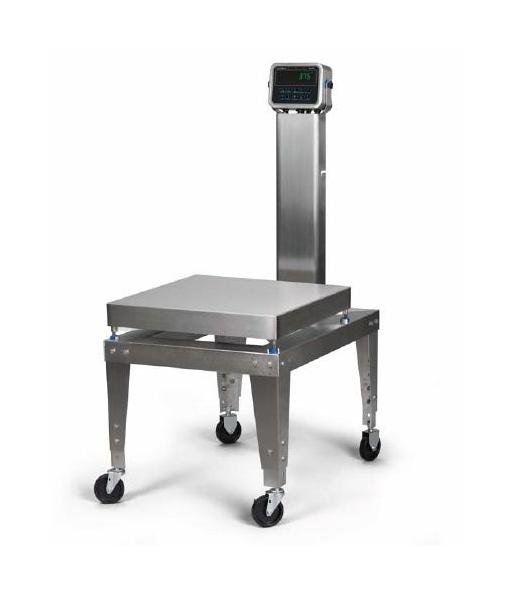

ZQ375 Checkweigher with Diamond Base
ZQ375 Checkweigher with Diamond Base
SKU:CHE-7214b4
Achieve precision with the ZQ375 Checkweigher featuring a durable Diamond Base, IP69K certification, and 500 lb capacity.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
ZQ375 Checkweigher with Diamond Base
$2,399.99
Quantity: 1
Claim Your Seller Account
ZQ375 Checkweigher with Diamond Base
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ZQ375 Medium Capacity Checkweigher, part of the ZQ375 Series, is a reliable solution for accurate weight measurement in industrial and food environments. Featuring a durable IP69K Diamond Base and NSF/ANSI 3-A 14159-1 certification, this checkweigher ensures precise results in wash-down conditions. Constructed from high-grade stainless steel, this checkweigher offers a robust design with easy cleaning. With a 500 lb capacity, 24x24-inch platform, and IP69K indicator, it provides up to 500% overload protection for dependable performance.
Product Specifications
Specifications Capacity
500 lb | 220 kg
Specifications Model Number
AWT05-800030
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
4 in
Specifications Platform Length
24 in
Specifications Platform Width
24 in
Specifications Shipping Weight
75 lb | 34 kg
