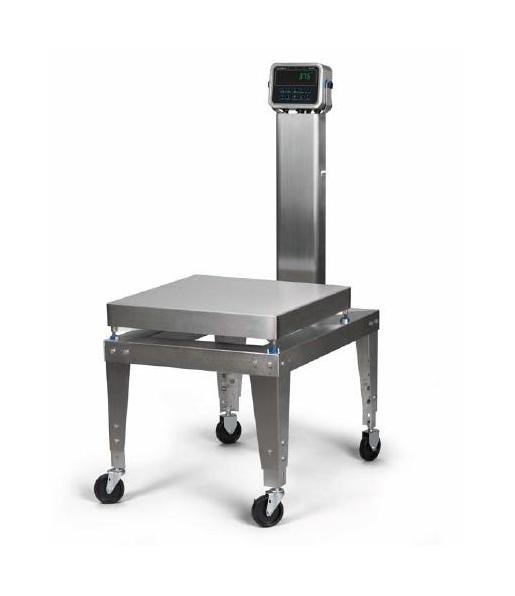

ZQ375 Diamond Base Checkweigher
ZQ375 Diamond Base Checkweigher
SKU:CHE-2b3368
High-precision Diamond Base Checkweigher for reliable weight measurements in food environments. NTEP certified with IP69K rating.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
ZQ375 Diamond Base Checkweigher
$2,499.99
Quantity: 1
Claim Your Seller Account
ZQ375 Diamond Base Checkweigher
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ZQ375 Diamond Base Checkweigher is a high-performance solution designed for precision checkweighing in food environments. With NTEP certification, IP69K rating, and a durable stainless steel construction, this checkweigher ensures reliable and accurate weight measurements. It features a range of options for enhanced functionality, including wireless modules, USB connectivity, and overload protection. NSF/ANSI Standard 3-A 14159-1 - 2010 certified, this checkweigher offers a robust, easy-to-clean design that meets the stringent requirements of Class III/IIIL standards.
Product Specifications
Specifications Capacity
100 lb | 50 kg
Specifications Model Number
AWT05-800027
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
4 in
Specifications Platform Length
20 in
Specifications Platform Width
20 in
Specifications Shipping Weight
65 lb | 30 kg
