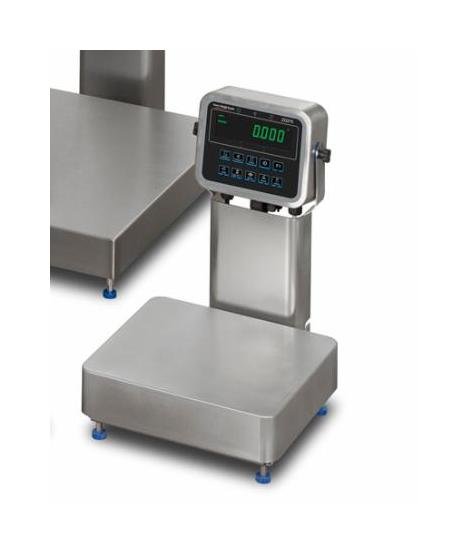

ZQ375 Low Capacity Torsion Base Checkweigher
ZQ375 Low Capacity Torsion Base Checkweigher
SKU:CHE-1ae8b0
Rugged ZQ375 Checkweigher with NTEP & NSF Certification, wash-down IP69K design, and customizable options for precise weight verification.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
ZQ375 Low Capacity Torsion Base Checkweigher
$649.99
Quantity: 1
Claim Your Seller Account
ZQ375 Low Capacity Torsion Base Checkweigher
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ZQ375 Low Capacity Torsion Base Checkweigher is a rugged and reliable solution for accurate weight verification in manufacturing and food processing environments. NTEP approved with a robust NEMA 4X (IP65) torsion base, this checkweigher ensures precise measurements with a Capacity of 30 lb | 13.6 kg. Certified by NSF/ANSI Standard 3-A, it meets stringent hygiene standards. Featuring a high food-grade stainless steel construction, wash-down design to IP69K, and a range of IP69K or IP65 NTEP & OIML approved stainless steel bases, the ZQ375 is ideal for use in diverse industrial settings. With multiple optional features available for customization, this checkweigher provides reliable performance and flexibility for your weighing needs.
Product Specifications
Specifications Capacity
30 lb | 13.6 kg
Specifications Model Number
AWT05-800062
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
3 in
Specifications Platform Length
14 in
Specifications Platform Width
12 in
Specifications Shipping Weight
26 lb | 11.8 kg
