ZQ375 Low Capacity Torsion Base Checkweigher - NSF Certified
ZQ375 Low Capacity Torsion Base Checkweigher - NSF Certified
SKU:CHE-eabdb8
ZQ375 Low Capacity Torsion Base Checkweigher - Legal-for-Trade, NSF Certified, High Precision Weighing
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
ZQ375 Low Capacity Torsion Base Checkweigher - NSF Certified
$2,499.99
Quantity: 1
Claim Your Seller Account
ZQ375 Low Capacity Torsion Base Checkweigher - NSF Certified
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

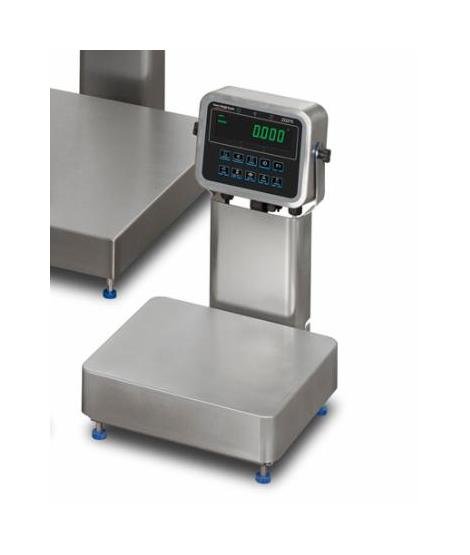

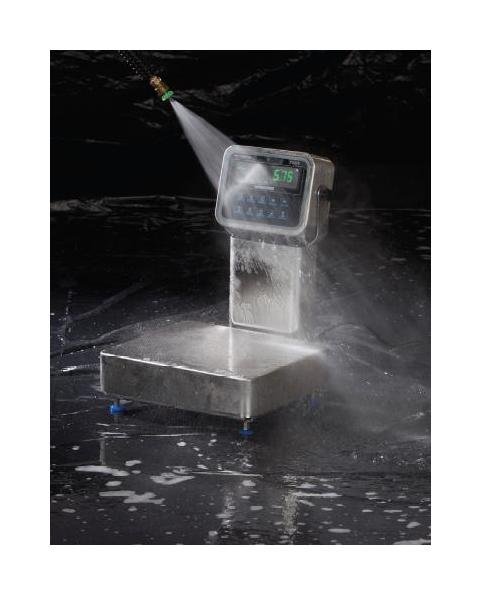

The ZQ375 Low Capacity Torsion Base Checkweigher from the ZQ375 Series is a precision instrument designed for accurate weight measurement in food environments. With NTEP CC 11-096 Class III/IIIL certification and NSF/ANSI 3-A 14159-1 compliance, this checkweigher ensures legal-for-trade operations. Constructed from high food-grade stainless steel with an IP69K torsion base, it offers full wash-down capabilities for optimal hygiene. The IP69K indicator, with up to 500% overload protection, provides precise readings and is compatible with various IP69K or IP65 NTEP & OIML approved stainless steel bases, meeting the stringent demands of institutional procurement standards.
Product Specifications
Specifications Capacity
5 lb | 2.3 kg
Specifications Model Number
AWT05-800016
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
3 in
Specifications Platform Length
8.75 in
Specifications Platform Width
8.75 in
Specifications Shipping Weight
26 lb | 11.8 kg
