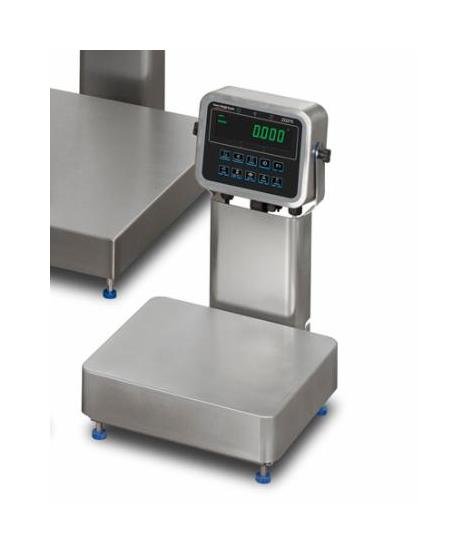

ZQ375 Low Capacity Torsion Base Checkweigher with NEMA 4X Certification
ZQ375 Low Capacity Torsion Base Checkweigher with NEMA 4X Certification
SKU:CHE-fc15d3

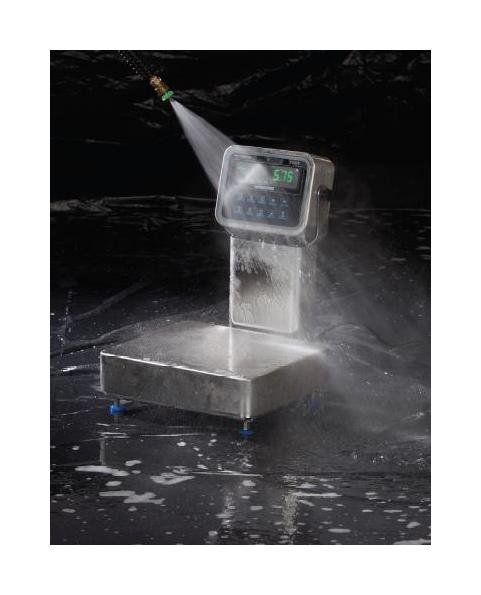

Reliable ZQ375 Checkweigher: NTEP-approved, NSF-certified, and IP69K wash-down ready for precise food weight measurement.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
ZQ375 Low Capacity Torsion Base Checkweigher with NEMA 4X Certification
$1,899.99
Quantity: 1
Claim Your Seller Account
ZQ375 Low Capacity Torsion Base Checkweigher with NEMA 4X Certification
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ZQ375 Low Capacity Torsion Base Checkweigher from the ZQ375 Series Checkweighers is a robust solution for precise weight measurement in food environments. With NTEP approval, NSF certification, and IP69K wash-down capability, it meets stringent industry standards. Built with high food-grade stainless steel and IP69K or IP65 bases, it offers up to 500% overload protection. Featuring a fully wash-down design and a range of optional modules for enhanced functionality, this checkweigher ensures accuracy and compliance in demanding settings.
Product Specifications
Specifications Capacity
12 lb | 5.5 kg
Specifications Model Number
AWT05-800064
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
3 in
Specifications Platform Length
8.75 in
Specifications Platform Width
8.75 in
Specifications Shipping Weight
26 lb | 11.8 kg
