ZQ375 Medium Capacity Diamond Checkweigher
ZQ375 Medium Capacity Diamond Checkweigher
SKU:CHE-9902c5
Ensure accuracy with the ZQ375 Medium Capacity Diamond Checkweigher's NTEP-approved design and IP69K protection. Ideal for food environments.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
ZQ375 Medium Capacity Diamond Checkweigher
$2,499.99
Quantity: 1
Claim Your Seller Account
ZQ375 Medium Capacity Diamond Checkweigher
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

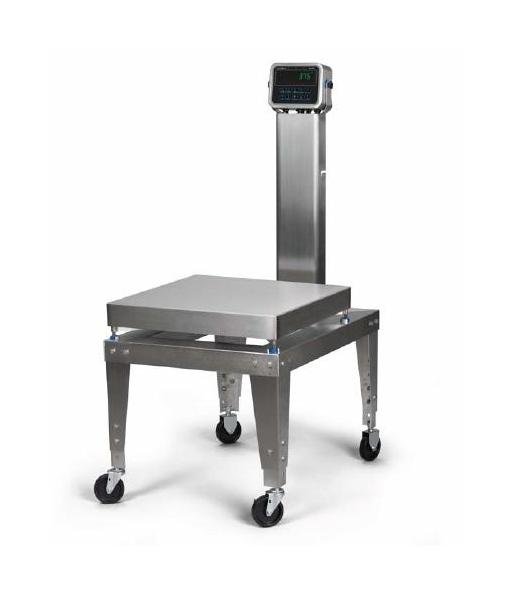

The ZQ375 Medium Capacity Diamond Base Checkweigher offers precise weight measurements up to 200 lb | 100 kg with a durable stainless steel construction. Certified by NSF/ANSI Standard 3-A 14159-1 - 2010, it meets strict hygiene regulations for food environments. Featuring IP69K wash-down protection and overload safeguards, this checkweigher ensures accurate and reliable performance. Choose from a range of optional modules for enhanced functionality and seamless integration into your operation.
Product Specifications
Specifications Capacity
200 lb | 100 kg
Specifications Model Number
AWT05-800029
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
4 in
Specifications Platform Length
24 in
Specifications Platform Width
24 in
Specifications Shipping Weight
75 lb | 34 kg
