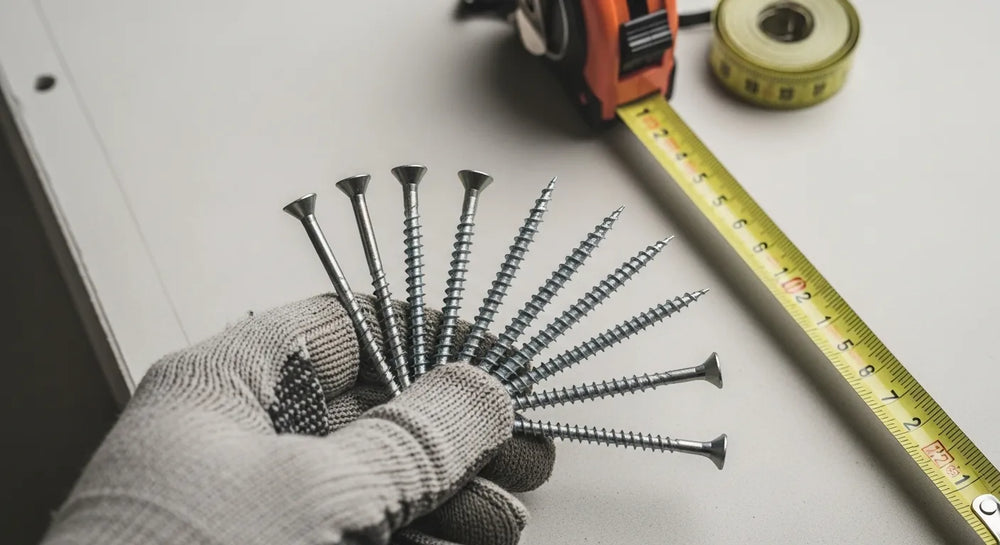

Calculating Your Drywall Screw Needs Accurately

Table of Contents

1. Introduction
2. The Foundations of Drywall Screw Calculation
3. Practical Calculation Methods and Rules of Thumb
4. Beyond Quantity: The Indispensable Value of U.S.-Made Quality
5. Advanced Considerations and Best Practices
6. Conclusion
7. FAQ

Introduction

Imagine a construction site, a MRO project, or a design engineering prototype nearing completion, only for work to grind to a halt because of a critical shortage of a seemingly small component: drywall screws. This common scenario, often underestimated, can lead to significant delays, budget overruns, and a cascade of logistical headaches. For procurement managers, MRO buyers, and business owners, precisely calculating the required quantity of materials is not just about avoiding multiple trips to the supplier; it's about optimizing project timelines, managing cash flow, and ensuring the seamless execution of vital operations. The seemingly simple question of "how many drywall screws do I need" quickly becomes a cornerstone of efficient project planning and supply chain resilience.

This comprehensive guide will delve into the precise methodologies for calculating drywall screw quantities, exploring the variables that influence these numbers, from sheet size and stud spacing to application type. Beyond just the numbers, we will also emphasize the critical importance of sourcing high-quality, U.S.-made screws to ensure structural integrity and long-term durability. We believe that equipping you with this detailed knowledge, coupled with reliable access to American-made components, is essential for driving efficiency and excellence in every project.

The Foundations of Drywall Screw Calculation

Accurately determining the number of drywall screws required for any project hinges on understanding several key variables. Miscalculating can lead to frustrating delays, unnecessary waste, or, worse, a compromised installation. Let's break down the core factors.

Drywall Sheet Dimensions and Layout

The most fundamental factor is the size of the drywall sheets you're using. Standard sheet sizes in the U.S. typically include:

• 4 feet x 8 feet (32 sq ft): The most common and easiest to handle.
• 4 feet x 10 feet (40 sq ft): Offers fewer seams, which can be advantageous.
• 4 feet x 12 feet (48 sq ft): Ideal for larger areas, minimizing seams even further.
• 4 feet x 14 feet & 4 feet x 16 feet (56 sq ft & 64 sq ft): Less common but used for specialized, very large spans.

Your layout strategy—how you plan to position the sheets to minimize cuts and waste—will directly impact the total linear feet of framing you'll be fastening to, and therefore the screw count. Horizontal installation (hanging sheets horizontally) is often preferred for walls as it places the tapered edges at eye level, making seams easier to finish, and can sometimes span more studs per sheet. Vertical installation is typically used for walls shorter than 8 feet or in commercial applications where fire ratings are a concern.

Framing Spacing: Studs, Joists, and Furring

The distance between your framing members is a critical determinant. The most common spacings are:

• 16 inches on center (OC): This is standard for most residential wall construction and provides excellent rigidity.
• 24 inches on center (OC): Often used for non-load-bearing walls, some ceilings, and can be more economical in terms of lumber.

Ceilings generally require more stringent fastening due to gravity, often necessitating closer screw spacing or the use of adhesives in conjunction with screws. Understanding whether you're attaching to wood studs, metal studs, or furring strips (often used over masonry) is also important, as it might influence the screw type and length.

Screw Spacing Requirements: Walls vs. Ceilings

Industry standards and best practices dictate specific screw spacing to ensure secure attachment and prevent drywall from sagging or cracking. These guidelines are crucial for a durable installation.

Walls

• Field Screws: Generally spaced 12 inches on center (OC) in the middle of the sheet.
• Edge Screws: Placed 7 to 8 inches OC along all edges that are fastened to framing. This includes the top and bottom plates, and any vertical studs.

Ceilings

• Increased Density: Due to the constant pull of gravity, ceiling drywall requires a denser fastening pattern. Screws are typically spaced 7 inches OC on all framing members, both in the field and along the edges.

Double-Layer Drywall

For enhanced soundproofing, fire resistance, or structural rigidity, double-layer drywall installations are common.

• First Layer: Screws are spaced approximately 12 inches OC.
• Second Layer: Screws are again spaced 12 inches OC, but critically, they should be offset or "staggered" from the screws in the first layer to avoid fastening into the same point in the framing and to provide a more even, distributed hold. Longer screws are required to penetrate both layers and secure firmly into the framing.

The Critical Role of Screw Length and Type

While the quantity is paramount, selecting the correct screw length and type is equally vital for a successful installation. Drywall screws are designed with specific threads and head types to ensure proper seating without tearing the paper facing.

• Screw Length: As a general rule, the screw should penetrate at least 5/8 inch into wood framing or at least 3/8 inch into metal framing.
  • For 1/2-inch drywall: 1-1/4 inch screws are common. For instance, a reliable 6 x 1-1/4 Coarse Thread Drywall Screw is a staple for many projects, ensuring secure attachment to wood studs.
  • For 5/8-inch drywall: 1-1/4 inch or 1-5/8 inch screws are often used. For projects requiring robust fastening into thicker drywall, an 8 x 4 Drywall Screw offers extended reach and strength.
  • For double-layer 1/2-inch drywall: 1-5/8 inch or 2-inch screws are needed to penetrate both layers and secure into the framing.
  • For double-layer 5/8-inch drywall: 2-inch or 2-1/4 inch screws are typically used. For specialized applications or thicker paneling, consider options like a 6 x 1 Fine Thread Drywall Screw, which might be suitable for metal studs or specific aesthetic finishes.
• Thread Type:
  • Coarse Thread: Ideal for wood studs, providing stronger grip in wood fibers.
  • Fine Thread: Designed for metal studs, as the finer threads tap into the thin metal without stripping.
• Head Type: Phillips head is standard, but square drive (Robertson) and Torx drive are also available, offering improved grip and reduced cam-out.
• Coatings: Black phosphate coating is common for corrosion resistance. For damp or outdoor applications, galvanized or ceramic-coated screws are essential to prevent rust and staining.

The right screw not only holds the drywall securely but also contributes to the longevity and integrity of the entire structure. Our mission at Maden.co is to democratize access to American manufacturing, ensuring you can find the right high-quality, U.S.-made components like these drywall screws for every specific need.

Practical Calculation Methods and Rules of Thumb

Estimating screw quantities can be approached in several ways, combining quick rules of thumb with more precise calculations.

Method 1: The "Square Footage" Rule (Quick Estimate)

A widely accepted rule of thumb for standard residential applications (1/2-inch drywall on 16-inch OC wood studs, single layer) is to estimate approximately 1 screw per square foot of drywall.

• Example: For a room requiring 1000 square feet of drywall, you would estimate around 1000 screws.

This method is a good starting point for initial budgeting but should be refined with more precise calculations, especially for larger or more complex projects.

Method 2: Detailed Calculation Per Sheet

This method provides a much more accurate count by calculating screws needed per sheet and then multiplying by the total number of sheets.

Step-by-Step for a 4x8 Drywall Sheet (16-inch OC Studs, Wall Application)

1. Horizontal Studs (Top & Bottom Plates): A 4-foot width means you have two 4-foot edges. With screws every 7-8 inches (let's use 8 inches for simplicity), you'd need (48 inches / 8 inches) + 1 = 7 screws per edge. So, 7 screws (top) + 7 screws (bottom) = 14 screws.
2. Vertical Studs:
   • A 4x8 sheet spans five 16-inch OC studs (one at 0", 16", 32", 48", 64", 80", 96"). The 4-foot width means it lands on 4 studs.
   • The 8-foot length (96 inches) means for each interior stud, screws are placed every 12 inches. So, (96 inches / 12 inches) + 1 = 9 screws per interior stud.
   • You have one edge stud that the sheet terminates on and another edge stud that the adjacent sheet would share. For the edges, it's 7-8 inches, so let's say 96 inches / 8 inches = 12 screws.
   • More simply, count the number of vertical fastening points. For a 4x8 sheet oriented vertically on 16" OC studs, it would span three studs (edge, middle, edge). Each 8-foot edge gets screws every 8 inches (approx 12 screws). The middle stud gets screws every 12 inches (approx 8 screws).
   • Refined Calculation for 4x8, 16" OC:
     • Horizontal edges (Top/Bottom Plates): Two 4-foot sections. Screws at 8" OC. (48/8) = 6 intervals, so 7 screws per edge. 7 x 2 = 14 screws.
     • Vertical Studs: The 4-foot width (48") means it will span 4 studs at 16" OC (0", 16", 32", 48").
       • Two "edge" studs (where the sheet starts and ends): Screws at 8" OC for the 8-foot length. (96/8) = 12 intervals, so 13 screws per edge stud. 13 x 2 = 26 screws.
       • Two "field" studs (interior): Screws at 12" OC for the 8-foot length. (96/12) = 8 intervals, so 9 screws per field stud. 9 x 2 = 18 screws.
     • Total per 4x8 sheet: 14 (horizontal) + 26 (edge vertical) + 18 (field vertical) = 58 screws.

This is a higher count than the 1 screw/sq ft rule (32 sq ft * 1 = 32 screws), illustrating the importance of detailed calculation. The more detailed method accounts for the denser spacing on edges.

Simplified Approach for 4x8, 16" OC:

A common practical rule often used is to assume roughly 50-60 screws per 4x8 sheet for walls, and 60-70 screws per 4x8 sheet for ceilings (due to 7" OC spacing).

Let's refine the ceiling calculation for a 4x8 sheet on 16" OC joists:

• Horizontal edges: Two 4-foot sections. Screws at 7" OC. (48/7) ≈ 7 intervals, so 8 screws per edge. 8 x 2 = 16 screws.
• Vertical Joists: Two "edge" joists and two "field" joists. Screws at 7" OC for the 8-foot length. (96/7) ≈ 13 intervals, so 14 screws per joist. 14 x 4 = 56 screws.
• Total per 4x8 sheet (Ceiling): 16 (horizontal) + 56 (vertical) = 72 screws.

As you can see, precise counting requires attention to detail.

Method 3: Using a General Factor (For Large Projects)

For very large projects, many experienced contractors use a general factor based on linear feet of framing or total square footage, with a higher contingency.

• Linear Feet of Framing: Estimate the total linear feet of studs/joists to be covered by drywall. Divide this by the desired screw spacing (e.g., 8 inches = 0.67 feet). This gives you the number of screws required along the framing. Then add screws for the top/bottom plates and any blocking. This is highly accurate but requires detailed framing plans.
• Advanced Square Footage Factor: If the "1 screw per sq ft" feels too low, consider a factor of 1.5 to 2 screws per square foot for walls and 2 to 2.5 screws per square foot for ceilings, especially if using a denser screw pattern or double-layer drywall. This accounts for overlap and denser edge fastening more effectively.

Incorporating a Waste Factor

Regardless of the method used, always add a 10-15% waste factor. Screws can be dropped, stripped, bent, or placed incorrectly. It's far better to have a small surplus than to run short mid-project.

• Example: If your calculation yields 1000 screws, add 15% (150 screws) for a total of 1150 screws.

Scenario: Calculating for a Room

Let's consider a room that is 10 feet x 12 feet with 8-foot high walls. Assuming 16-inch OC studs and joists, single-layer 1/2-inch drywall.

1. Wall Area:
   • Perimeter = (10 + 12) * 2 = 44 feet
   • Wall Height = 8 feet
   • Total Wall Area = 44 feet * 8 feet = 352 sq ft
   • Number of 4x8 sheets for walls = 352 sq ft / 32 sq ft/sheet = 11 sheets
2. Ceiling Area:
   • Ceiling Area = 10 feet * 12 feet = 120 sq ft
   • Number of 4x8 sheets for ceiling = 120 sq ft / 32 sq ft/sheet = 3.75 sheets (round up to 4 sheets)
3. Total Sheets: 11 (walls) + 4 (ceiling) = 15 sheets
4. Screw Calculation (Using detailed per-sheet estimate):
   • Wall screws per sheet (approx 58) = 11 sheets * 58 screws/sheet = 638 screws
   • Ceiling screws per sheet (approx 72) = 4 sheets * 72 screws/sheet = 288 screws
   • Subtotal = 638 + 288 = 926 screws
5. Add Waste Factor (15%):
   • 926 * 0.15 = 138.9 screws (round to 139)
   • Total screws needed = 926 + 139 = 1065 screws

If we used the "1 screw per sq ft" rule:

• Total area = 352 + 120 = 472 sq ft. So, 472 screws + 15% waste (71) = 543 screws. This clearly demonstrates that the "1 screw per sq ft" rule dramatically underestimates the required quantity for proper installation, especially when considering edge fastening. Relying solely on such simplified rules can leave your project vulnerable to material shortages.

Beyond Quantity: The Indispensable Value of U.S.-Made Quality

While precise calculations are vital for operational efficiency, the quality of the drywall screws themselves is paramount for project success, longevity, and safety. A subpar screw, regardless of quantity, can compromise an entire installation. This is where the strategic choice of sourcing comes into play, and why at Maden.co, we champion U.S.-made components.

Why Quality Drywall Screws Matter

1. Holding Power & Structural Integrity: High-quality screws are engineered for optimal thread design, ensuring superior grip and pull-out resistance. This is critical for preventing drywall from coming loose, especially in ceilings or high-traffic areas.
2. Corrosion Resistance: For areas prone to humidity, such as bathrooms, kitchens, or basements, or even for long-term durability in standard installations, the proper coating on a screw is essential. U.S.-made screws often feature robust phosphate or ceramic coatings that resist rust, preventing unsightly stains and structural degradation over time.
3. Reduced Stripping & Cam-out: Precision manufacturing means consistent head and drive recess quality. This translates to fewer stripped screw heads and less "cam-out" (where the driver bit slips out of the screw head), saving time, reducing frustration, and minimizing material waste during installation. A well-formed head on a screw, such as those you'll find for a 6 x 1-1/4 Coarse Thread Drywall Screw, means a cleaner drive every time.
4. Consistency & Reliability: When you purchase U.S.-made fasteners from verified manufacturers, you can expect consistent quality from batch to batch. This reliability is crucial for large-scale projects where variations in material quality can lead to unpredictable performance and costly rework. The consistency found in products like the 8 x 4 Drywall Screw from American manufacturers is a testament to this commitment.
5. Compliance with Industry Standards: Many construction and industrial projects must adhere to strict building codes and industry standards (e.g., ASTM, ICC). American manufacturers are typically well-versed in these requirements and produce fasteners that meet or exceed them, providing peace of mind and reducing compliance risks for procurement managers.

The Maden.co Advantage: Sourcing American Excellence

For a procurement manager under pressure to source a specific DIN 931 compliant hex cap screw, a design engineer needing specific material certifications for a new prototype, or an MRO buyer facing an unexpected equipment breakdown, the ability to quickly find and finance a verified, U.S.-made part is a game-changer. Our entire business model is built on this principle; you can learn more about our mission to champion American manufacturing here: About Us.

At Maden.co, we are committed to connecting industrial buyers with over 2.5 million American-made products from our network of 800+ verified U.S. manufacturers. Our vision is to become the definitive platform that proves American-made components are as accessible and convenient as any global alternative. This isn't just a vision; it's a driving force behind the quality and breadth of products you'll find on our platform.

Key Benefits of Sourcing Through Maden.co:

• Supply Chain Resilience: Relying on domestic manufacturers significantly reduces the risks associated with global supply chain disruptions, geopolitical instability, and fluctuating international shipping costs. When you procure through Maden.co, you're investing in a more stable and predictable supply chain.
• Unrivaled Quality and Compliance: We uphold the values of American Manufacturing Pride and Industrial Excellence. Our verified manufacturers adhere to stringent U.S. quality standards, ensuring that every product, from a basic drywall screw to complex industrial machinery, meets your exact specifications and regulatory requirements. This focus on quality means you can trust the durability and performance of components like the 6 x 1 Fine Thread Drywall Screw for specialized applications.
• Reduced Total Cost of Ownership (TCO): While the initial unit price might sometimes differ from offshore alternatives, the true cost of procurement extends far beyond the sticker price. U.S.-made products often lead to reduced failure rates, fewer project delays, lower shipping costs, less inventory holding risk, and simpler returns processes. These factors collectively contribute to a lower Total Cost of Ownership.
• Supply Chain Transparency and Customer Empowerment: We believe in Digital Innovation and Supply Chain Transparency. Our platform provides clear, reliable information about product origin and manufacturer credentials, empowering our customers to make informed decisions.
• Streamlined Procurement Friction: Maden.co is designed to simplify your purchasing process. Our extensive catalog and intuitive interface make it easy to find specific products, compare options, and manage orders efficiently. This focus on Customer Empowerment ensures that sourcing critical components is no longer a bottleneck.
• Strategic Financial Tools with Instant Financing: We understand that managing cash flow is critical for businesses of all sizes. That's why we offer Instant Financing at checkout. This strategic tool allows procurement managers and business owners to make larger-volume purchases without immediate capital outlay, supporting project continuity and growth. You can apply for Instant Financing at checkout to streamline your capital-intensive projects. This isn't just a payment option; it's a partnership in building a more flexible and robust procurement strategy.

Choosing Maden.co means partnering with a platform that is actively driving the American manufacturing revival. We are proud to declare: "America's manufacturing revival is here." When you register as a vendor and join the American manufacturing revival, you become part of this powerful movement: Vendor Registration.

Advanced Considerations and Best Practices

To further refine your drywall screw estimates and ensure project success, consider these additional factors and best practices.

Accounting for Complex Areas

• Corners and Intersections: Internal and external corners often have additional framing or blocking that requires careful screw placement. While not typically adding to the overall sheet count directly, ensure enough screws are allocated for securing corner beads or for double-screwing where structural integrity is paramount.
• Windows and Doors: Around openings, drywall often needs to be cut and fitted with precision. The edges of these cuts will need to be securely fastened to the framing surrounding the opening. Account for denser screw spacing along these edges to prevent cracking.
• Electrical Boxes and Fixtures: Drywall needs to be cut around these elements, creating additional edges that must be securely fastened. While small, the cumulative effect over a large project can be significant.
• Control Joints and Expansion Gaps: In very large drywall installations (e.g., long corridors or large open ceilings), control joints are installed to accommodate movement and prevent cracking. The drywall on either side of these joints will need appropriate fastening.

Impact of Drywall Thickness

The thickness of your drywall also plays a subtle role:

• 1/4-inch Drywall: Often used for curved surfaces or as a skim coat over existing walls. Requires very short screws (e.g., 1 inch) and closer spacing due to its flexibility.
• 1/2-inch Drywall: Standard for most residential applications.
• 5/8-inch Drywall: Used for increased fire resistance, sound attenuation, or where greater rigidity is required. While the screw spacing generally remains the same as 1/2-inch, you must ensure the screw length is appropriate (e.g., 1-5/8 inch for single layer, 2-1/4 inch for double layer).

Always verify local building codes for specific requirements related to drywall thickness and fastener spacing, especially in commercial or multi-family residential projects.

Adhesives and Fastener Reduction

Some contractors use drywall adhesive in conjunction with screws, especially on ceilings or in areas where a very strong bond is desired. While adhesives significantly improve holding power and can sometimes allow for a slight reduction in screw count in the field, screws remain critical for the initial hold, proper seating, and long-term mechanical fastening. Do not rely solely on adhesive for structural support; it is primarily a supplement to proper screw fastening. Always follow manufacturer guidelines for both adhesive and drywall screws.

Efficient Procurement Strategies

Once you've accurately calculated your screw needs, efficient procurement becomes the next critical step. This is where a platform like Maden.co truly excels. Instead of spending valuable time sifting through various suppliers, managing multiple quotes, and worrying about product origin, our marketplace simplifies the entire process.

• Centralized Sourcing: Find a vast array of drywall screws, from specialized fine-thread options for metal studs to robust coarse-thread solutions for wood, all from verified U.S. manufacturers.
• Bulk Ordering Capabilities: For large projects, ordering in bulk ensures cost-effectiveness and reduces the likelihood of running out of stock. Our platform facilitates these larger procurements.
• Traceability and Certification: With Maden.co, you gain greater transparency into the origins and specifications of your products. This is invaluable for projects requiring material certifications or specific compliance documentation.
• Access to Hard-to-Find Components: Beyond standard drywall screws, our network includes manufacturers producing highly specialized fasteners and components. If you're struggling to locate a particular U.S.-made part, Maden.co is your go-to resource.

If you have specific sourcing questions about a particular type of drywall screw, or any other industrial component, our team is ready to help guide you through our extensive catalog: Contact Us.

Conclusion

The question of "how many drywall screws do I need" is far more nuanced than a simple glance might suggest. It’s a critical component of effective project planning, directly impacting timelines, budgets, and the long-term integrity of any construction or renovation. By meticulously considering sheet dimensions, framing spacing, screw patterns for both walls and ceilings, and applying a prudent waste factor, procurement managers, MRO buyers, and business owners can move beyond estimation and towards precision.

However, quantity without quality is a false economy. The performance, durability, and compliance of your fasteners are non-negotiable. Sourcing high-quality, U.S.-made drywall screws ensures optimal holding power, corrosion resistance, and consistent performance, reducing the total cost of ownership and enhancing project reliability. This commitment to industrial excellence is at the very core of Maden.co's mission.

At Maden.co, we are dedicated to democratizing access to the unparalleled quality of American manufacturing, offering a vast catalog of over 2.5 million U.S.-made products from our network of 800+ verified manufacturers. We believe in providing solutions that improve supply chain resilience, reduce procurement friction, and empower our customers with choice and transparency.

Don't let an underestimation of screw quantities or a compromise on quality derail your next project. Explore the robust selection of American-made drywall screws and other industrial components on our marketplace today. From general purpose 6 x 1-1/4 coarse thread drywall screws to the durable 8 x 4 drywall screw for heavier applications, and the precision of a 6 x 1 fine thread drywall screw for metal studs, we have the solutions you need. Visit Maden.co to begin optimizing your procurement process. You can apply for Instant Financing at checkout to streamline your capital-intensive projects, ensuring your business has the resources it needs to thrive. Partner with us and experience the strategic advantages of American manufacturing, where America's manufacturing revival is here.

FAQ

Q1: What is the general rule of thumb for calculating drywall screws?

A1: A common quick estimate is approximately 1 screw per square foot of drywall. However, for more accurate calculations, especially considering denser screw spacing on edges and ceilings, a more detailed per-sheet calculation (often yielding 50-60 screws per 4x8 sheet for walls and 60-70 for ceilings) or a factor of 1.5-2.5 screws per square foot is recommended, along with a 10-15% waste factor.

Q2: Why do ceilings require more drywall screws than walls?

A2: Ceilings are subject to constant gravitational pull, which increases the risk of sagging or falling drywall if not adequately fastened. Therefore, industry standards recommend a denser screw pattern for ceilings, typically spacing screws every 7 inches on center on all framing members, compared to 12 inches in the field and 7-8 inches on edges for walls.

Q3: What is the difference between coarse-thread and fine-thread drywall screws?

A3: Coarse-thread drywall screws are designed with wider, more aggressive threads that grip effectively into wood studs, making them ideal for wood framing. Fine-thread drywall screws have smaller, more numerous threads that are better suited for tapping into and securing drywall to metal studs without stripping the thin metal.

Q4: How can Maden.co help with procuring drywall screws and other industrial components?

A4: Maden.co provides a centralized B2B marketplace connecting industrial buyers with over 2.5 million American-made products from 800+ verified U.S. manufacturers. We ensure access to high-quality, compliant components like drywall screws, enhance supply chain resilience, reduce procurement friction, and offer strategic tools like Instant Financing at checkout to help manage cash flow for large-volume purchases.
